Base Moulding 5" - 13

Base Moulding 5" - 13

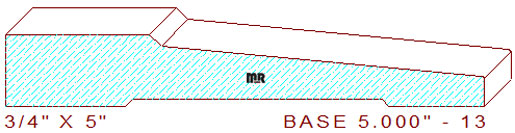

This beveled base moulding 5" - 13 measures 5.000" wide by .750" thickness. The profile is composed of a 1-1/2" wide fillet attached to a 1/8" forty five degree chamfer, connected to a 5.299 degree bevel leaving a 5/16" thickness dimension at the top of the pattern.

Browse our backout category for a suitable relief cut for this pattern, we have a few options to select from. Our purple colored ceramic blend grinding wheel hogging at 2000 rpm, with a twenty-five-degree back clearance angle will rough grind a set of high-speed steel cutters in a minimal amount of time. Review our article on the importance of having the profile knife grinder perfectly level, this commentary will insure prolonged use of your machinery while maintaining consistent perfection when grinding moulding knives.

For knife quoting purposes use the calculator below, we have added only the important dimensions, just determine the profiles you need. A brief detailed explanation on how to use the calculator is here. Width = 5.000", thickness = .000".

Depth of Cut: right vertical cutter head = .000", left set of blades = .000", top horizontal profile knives = .594", bottom set of cutters = .062".
