Base Moulding 5" - 14

Base Moulding 5" - 14

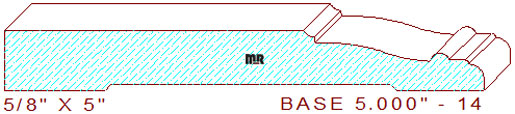

This base moulding 5" - 14 measures 5.000" wide by .625" thickness. The design is comprised of a 3-1/8" wide horizontal line, connected to a 1/8" cove with a 1/16" vertical line that transitions into a shallow french curve, joined to 13/64" wide half round bead with a stepped fillet and a 5/32" quarter round bead at the top.

Browse our backout category for a suitable relief cut for this pattern, we have a few options to select from. Architects, interior designers, lumber mills, and manufacturers have been utilizing our vast variety of creative designs for years, we trust you will find that special profile to enhance the architectural style of your home. If you have any questions or concerns about knife grinding procedures for any of our profiles, please contact us, we would be honored to assist you.

For knife quoting purposes use the calculator below, we have added only the important dimensions, just determine the profiles you need. A brief detailed explanation on how to use the calculator is here. Width = 5.000", thickness = .000".

Depth of Cut: right vertical cutter head = .000", left set of blades = .000", top horizontal profile knives = .594", bottom set of cutters = .062".

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
