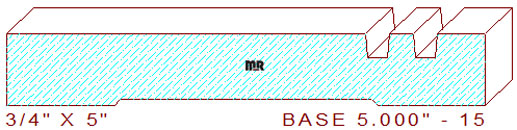

This base moulding 5" - 15 measures 5.000" wide by 3/4" thickness. The contemporary design is comprised of a 3-3/4" wide by 1/4" deep stepped line, connected to two 1/4" wide by 1/4" deep quirks that that are separated by a 1/4" wide raised fillet, with a 1/2" wide horizontal line at the top of the pattern.
Browse our backout category for a suitable relief cut for this pattern, we have a few options to select from. We invite you to search for other design ideas for your client's elegant home, we have over 15,000 alternative profile options for you to choose from, simply alter the search parameters to view. Our eminence derives from over thirty-five years of experience and superior functionality of all our custom profile designs.
For knife quoting purposes use the calculator below, we have added only the important dimensions, just determine the profiles you need. A brief detailed explanation on how to use the calculator is here. Width = 5.000", thickness = .000".
Depth of Cut: right vertical cutter head = .000", left set of blades = .000", top horizontal profile knives = .250", bottom set of cutters = .062".
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.Copyright © Mirror Reflections Inc. All rights reserved.
