Base Moulding 5" - 19

Base Moulding 5" - 19

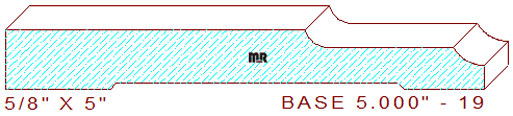

This base moulding 5" - 19 measures 5.000" wide by .625" thickness. The profile is composed of a 3-1/8" wide horizontal line, connected to a 1-9/16" wide congee consisting of a 1/4" radius, joined to a 3/8" wide cove leaving a 1/4" thickness dimension at the top of the design. Browse our backout category for a suitable relief cut for this pattern, we have a few options to select from.

Need this profile template and a set of moulding knives quickly? We generally can have these cutters ground with any one of our premium quality high speed steels or carbide, and shipped within twenty-four hours. We have artistic profiles from several different architectural eras, there are literally thousands of compelling moulding designs to help match your creative style.

For knife quoting purposes use the calculator below, we have added only the important dimensions, just determine the profiles you need. A brief detailed explanation on how to use the calculator is here. Width = 5.000", thickness = .000".

Depth of Cut: right vertical cutter head = .000", left set of blades = .000", top horizontal profile knives = .531", bottom set of cutters = .062".

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
