Baseboard 5" - 20
Baseboard 5" - 20

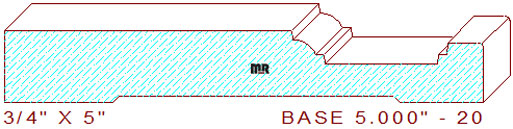

Add a touch of southwestern charm to your home with our 5" - 20 baseboard. Measuring 5.000" in width and .750" in thickness, this baseboard features a stepped profile with a unique and stylish design. The profile includes a 3" broad horizontal line attached to a 3/32" deep vertical line and a 9/32" radius arc, connected to a 3/32" wide by 3/32" deep stepped line. The top of the pattern is finished with a 1-3/16" broad straight line with another 3/32" tall step that transitions to a 3/8" wide raised fillet with a 1/16" eased edge.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.000
Depth of Cut: 0.343
Bottom Cutter Head
Width: 5.000
Depth of Cut: 0.062
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$342.00
$342.00
Total:
$684.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$365.00
$365.00
Total:
$730.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$399.50
$399.50
Total:
$799.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
