Base Moulding 5" - 21

Base Moulding 5" - 21

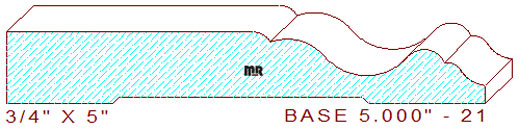

This stylish base moulding 5" - 21 measures 5.000" wide by .750" thickness. The profile is composed of a 2-3/4" horizontal line with a radiused edge, joined to a bidirectional cyma reversa that transitions into a small ogee, leaving a 3/16" thickness dimension at the top of the pattern. Browse our backout category for a suitable relief cut for this design, we have a few options to select from.

Custom-made elegance is a phrase used to define the beauty, style and artisanship of thousands of our moulding patterns. Weather you own a recently built house or older style residence, we have the ability, knowledge and experience to create profiles that will complement the architectural décor of your elegant home.

For knife quoting purposes use the calculator below, we have added only the important dimensions, just determine the profiles you need. A brief detailed explanation on how to use the calculator is here. Width = 5.000", thickness = .000".

Depth of Cut: right vertical cutter head = .000", left set of blades = .000", top horizontal profile knives = .562", bottom set of cutters = .062".

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
