Baseboard 5" - 24
Baseboard 5" - 24

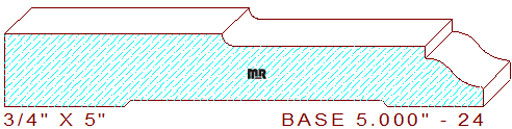

Add a touch of colonial charm to your home with our 5" - 24 base moulding. Measuring 5.000" in width and .750" in thickness; this baseboard features a detailed and sophisticated profile. The design includes a 2-17/64" broad segment, connected to a 2-1/8" wide cong'e derived from a 1/8" radius cove on one side and a 1/8" vertical step on the opposite edge. The short line transitions into a two tangent radius ogee, leaving a 3/16" thickness dimension on the design's right edge.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.000
Depth of Cut: 0.552
Bottom Cutter Head
Width: 5.000
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$342.00
$342.00
Total:
$684.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$365.00
$365.00
Total:
$730.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$399.50
$399.50
Total:
$799.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
