Base Moulding 5" - 26

Base Moulding 5" - 26

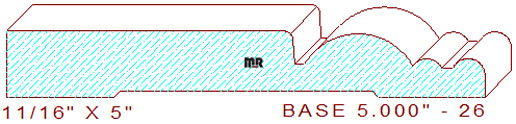

This beaded base moulding 5" - 26 measures 5.000" wide by .687" thickness. The reeded profile is comprised of a 3" wide horizontal line with a 11/32" deep vertical line attached to a 1/8" wide sunk fillet, connected to a 21/32" radius arc with two more beads separated by a 1/8" wide horizontal line at the top of the pattern. Browse our backout category for a suitable relief cut for this pattern, we have a few options to select from.

This professional cad dxf file contains two high precision template drawings to produce cutters for this decorative baseboard detail, one for milling the entire width of the pattern, and the other for milling just the profile portion of the design. From just an idea in one's mind, to reality in their home, our moulding profiles reflect the beauty and style of your imagination, let us help you design a custom pattern for your home today.

For knife quoting purposes use the calculator below, we have added only the important measurements, just determine the cutters you need. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the moulder to help operators save time and increase accuracy during machine setup.

Width = 5.000" / Depth of Cut = .594" (top knives) & .062" (bottom cutters).

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
