Base Moulding 5" - 31

Base Moulding 5" - 31

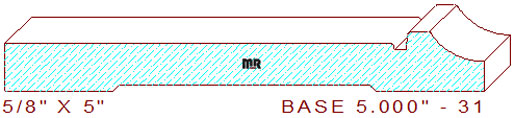

This unique base moulding 5" - 31 measures 5.000" wide by .625" thickness. The distinctive profile is comprised of a 4-1/16" wide horizontal line with a 1/16" deep eased edge at a 1/2" thickness dimension, attached to a 1/8" wide sunk fillet, connected to a 1/4" wide raised fillet that transitions into a 21/32" cove at the top of the design. Browse our backout category for a suitable relief cut for this pattern, we have a few options to select from.

Take advantage of our specialized design skills with over thirty-five years experience in wood moulding manufacturing, superior designed acrylic templates, and exceptional quality cutters. We generally can have these knives ground with any one of our premium quality high speed steels or carbide and shipped within twenty-four hours.

For knife quoting purposes use the calculator below, we have added only the important measurements, just determine the cutters you need. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the moulder to help operators save time and increase accuracy during machine setup.

Width = 5.000" / Depth of Cut = .476" (top knives) & .062" (bottom cutters).

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
