Southwestern Base/Case Moulding 5" - 39

Southwestern Base/Case Moulding 5" - 39

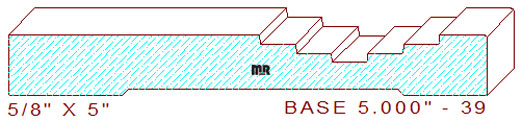

This Southwestern Base/Case Moulding 5" - 39 measures 5.000" wide by .625" thickness with a .282" depth of cut on the top horizontal moulding cutters. Search our backout category for an appropriate relief cut for this pattern, we have a few options for you to select from.

The bidirectional stepped profile is comprised of a 2-5/8" wide straight line, connected to a series of three bidirectional steps measuring 3/8" wide by 3/32" deep, attached to a 1/2" wide straight line with a small eased edge located at the top of the pattern. We have a slightly larger similar profile with different dimensions for your review and consideration, Baseboard 5.125" - 12. This moulding design includes the required draft angles to maintain the ability to sharpen the knives properly without modifying the detail while prolonging the milling time between sharpening.

Please review some of our helpful moulder and knife grinding articles, they will assist you in many aspects of moulder set up and knife grinding procedures. These commentaries were written to help you be more familiar with the machinery, while making your job a little easier in the process.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
