Base Moulding 5" - 43

Base Moulding 5" - 43

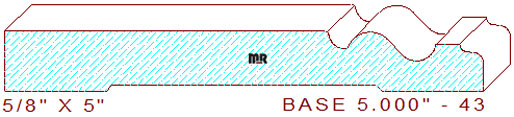

This beautiful base molding 5" - 43 measures 5.000" wide by .625" thickness. The decorative profile is comprised of a 3-3/8" wide horizontal line attached to an 11/64" radius cove that transitions into a short cyma reversa, connected to a 1/4" wide raised fillet with a tiny cyma recta at the top of the design. Browse our backout category for a suitable relief cut for this pattern, we have a few options to select from.

Would you like to reduce the amount of time it takes to set up the moulder for a milling production run? Perhaps calibrating the machine spindles axially and radially will substantially decrease setup time while simultaneously increasing production.

For knife quoting purposes use the calculator below, we have added only the important dimensions, just determine the profiles you need. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the moulder to help operators save time and increase accuracy during machine setup.

Width = 5.000" / Depth of Cut = .468" (top knives) & .062" (bottom cutters).

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
