Base Moulding 5" - 59

Base Moulding 5" - 59

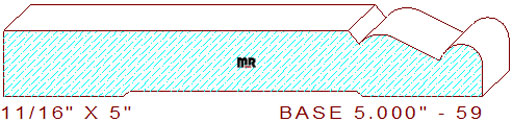

This good looking baseboard moulding 5" - 59 measures 5.000" wide by .687" thickness. The attractive profile is comprised of a 3-23/32" wide straight line with a chamfered edge, attached to a down sloping thumbnail shaped arc that transitions into a 7/16" wide half round circle at the top of the pattern. Browse our backout category for a suitable relief cut for this detail, we’re confident you will find a functional design to suit your needs.

Are you looking to become more efficient in your current milling production? Please read our commentary on moulder production tips, these clever suggestions were written to help you save time and money on a daily task.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 5.000" / Depth of Cut = .517" (top knives) & .062" (bottom cutters.)

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
