Base Moulding 5" - 64

Base Moulding 5" - 64

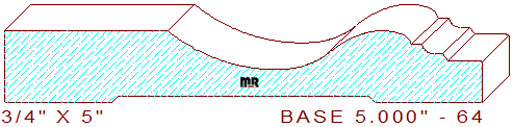

This uniquely elegant baseboard moulding 5" - 64 measures 5.000" wide by .750" thickness, it could also be utilized as a casing by simply increasing the thickness and adding the radius of choice to the outside edge, or try one of our many stylish backband designs. The creative profile is composed of a 1-45/64" wide flat line on the left side bottom, connected to a five tangent radius french curve in the center that transitions into a 1/16" wide horizontal line, joined to a 7/32" wide congee consisting of a 1/8" cove with a small chamfered edge, merging with a 3/8" wide flat section with a 3/64" eased edge leaving a 7/16" thickness dimension at the top of the design.

Utilize some of our user-friendly moulding profiles, all professionally designed by an accomplished draftsman/toolmaker with over thirty-five years of experience in woodworking and former Weinig moulder/grinder field service technician.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 5.000" / Depth of Cut = .510" (top knives) & .063" (bottom cutters.)

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
