Base Moulding 5" - 65

Base Moulding 5" - 65

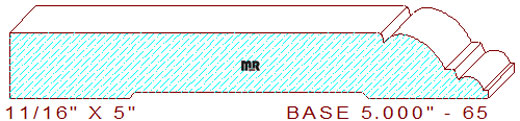

This Attractive Base Moulding 5" - 65 measures 5.000" wide by .687" thickness with a .594" depth of cut on the top horizontal profile cutters. Search our backout category for an appropriate relief cut for this pattern, we have a few options to select from.

The good-looking profile is comprised of a 3-29/32" wide horizontal line with a 1/16" radius edge, connected to a thumbnail shaped arc, attached to a small stepped fillet that transitions into a 1/4" wide radius arc with a 1/16" wide fillet positioned at the top of the pattern.

This professionally drafted cad dxf file contains two high precision template designs to create cutters for this beautiful baseboard, one for milling the entire width of the design, and the other for milling just the profile section of the pattern. From just an idea in your mind, to reality in your home, our moulding profiles reflect the beauty and style of your imagination, let us help design your custom pattern today.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
