Base Moulding 5" - 68

Base Moulding 5" - 68

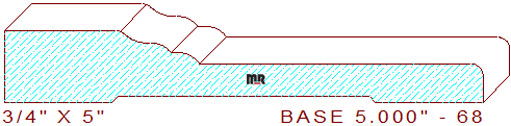

This attractive baseboard moulding 5" - 68 measures 5.000" wide by .750" thickness. The beautiful profile is comprised of a 1-1/4" wide straight flat line with a 1/8" eased inner edge, connected to a two tangent radius cyma recta joined to a tiered 1/4" radius arc that transitions into a 2-31/32" wide straight line with a 1/8" eased edge, leaving a 15/32" thickness dimension on the thin side of the design. We offer a matching casing for this pattern for your review and consideration, casing 3.250" - 7. Browse our backout category for a suitable relief cut for this detail, we’re confident you will find a functional design to suit your needs.

Architects, interior designers, lumber mills, and manufacturers have been utilizing our vast variety of creative designs for years, we trust you will find that special profile to enhance the architectural style of your client's home. If you have any questions or concerns about knife grinding procedures for any of our profiles, please contact us, we would be honored to assist you.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 5.000" / Depth of Cut = .625" (top knives) & .062" (bottom cutters.)

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
