Base Moulding 5" - 79

Base Moulding 5" - 79

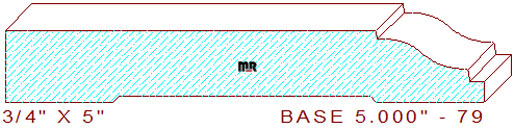

This ogee base moulding 5" - 79 measures 5.000" wide by .750" thickness. The stylish profile is comprised of a 3-7/8" wide by 3/32" deep stepped line, connected to a two tangent radius ogee with a 3/32" vertical step and a 5/32" horizontal line on the top of the design. Try one of our fancy base cap/shoe molding .875" - 2 on the bottom portion of this pattern, find an irresistibly compelling design by simply changing the width search parameters to any desired size in the search boxes provided. Let us assist you in shaping your home’s astonishing architectural decor, one attractive profile at a time.

Need this profile template and a set of moulding knives quickly? We generally can have these cutters ground with any one of our premium quality high speed steels or carbide and shipped within twenty-four hours. We have artistic profiles from several different architectural eras, there are literally thousands of compelling designs to help match your creative style.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 5.000" / Depth of Cut = .532" (top knives) & .063" (bottom cutters.)

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
