Baseboard 5" - 81
Baseboard 5" - 81

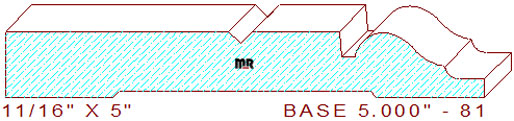

This custom baseboard 5" - 81 measures 5.000" wide by .687" thickness, enabling the pattern to be cut from four-quarter lumber. The unique profile is comprised of a 2-21/64" broad flat line on the top left, attached to a 1/4" wide by 1/8" deep v-groove joined to a 29/32" broad line that transitions into a 5/32" wide sunk fillet in the center, merged with a two tangent radius cyma reversa and a 7/16" wide cong'e derived from a 5/32" cove, leaving a 3/16" thickness dimension on the right side of the design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.000
Depth of Cut: 0.496
Bottom Cutter Head
Width: 5.000
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$342.00
$342.00
Total:
$684.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$365.00
$365.00
Total:
$730.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$399.50
$399.50
Total:
$799.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
