Baseboard 5" - 92
Baseboard 5" - 92

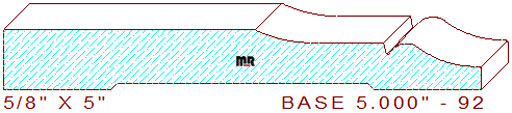

This modern baseboard 5" - 92 measures 5.000" wi"e by .625" thickness, allowing the detail to be machined out of four-quarter lumber. The custom profile is composed of a 2-41/64" broad straight line on the top left. It's connected to a shallow 1-11/32" wide cong'e derived from"a 1-5/16" cove in the center, attached to a 1/16" wide angle and a tiny sunk fillet that transitions into a small two tangent radius cyma reversa with a 3/64" eased edge on the right edge of the design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.000
Depth of Cut: 0.579
Bottom Cutter Head
Width: 5.000
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$342.00
$342.00
Total:
$684.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$365.00
$365.00
Total:
$730.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$399.50
$399.50
Total:
$799.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
