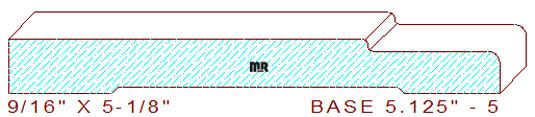

This stepped base moulding measures 5-1/8" wide by 9/16" thick, the profile is basic and straightforward, it consist of a 1-3/8" wide fillet with a 1/8" radius round over, at 7/16" thickness, it steps upward 1/8" to the remaining flat portion at 9/16" thickness. Although this is a very basic pattern it is widely used in modern and contemporary style homes.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change
the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please
send $5.00 via PayPal.Me/MirrorReflections we will email you
the dxf file shortly after payment is received.
