Base Moulding 5-1/8" - 7

Base Moulding 5-1/8" - 7

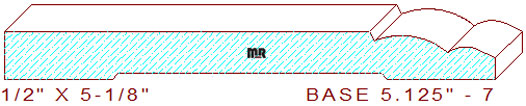

This classic base moulding 5-1/8" - 7 measures 5.125" wide by .500" thickness. The profile is comprised of a 3-13/16" wide horizontal line, attached to a 3/32" deep sixty-degree bevel that transitions into a 3/4" radius arc and a 5/16" radius semi-circle at the top of the design. Browse our backout category for a suitable relief cut for this detail, we have a few options to select from. You may have to change the backout search parameters by a quarter of an inch or so to find a more suitable size cutter to mill the bottom side of this detail.

You will be able to manufacture high speed steel or carbide profile knives literally within minutes after downloading this beautiful baseboard pattern. Check out our updated tooling and supplies catalog for other high quality products we supply for your moulder and knife grinding room, all with reasonable pricing.

For knife quoting purposes use the calculator below, we have added only the important measurements, just determine the cutters you need. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the moulder to help operators save time and increase accuracy during machine setup.

Width = 5.125" / Depth of Cut = .306" (top knives) & .062" (bottom cutters).

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
