Base Moulding 5-3/16" - 2

Base Moulding 5-3/16" - 2

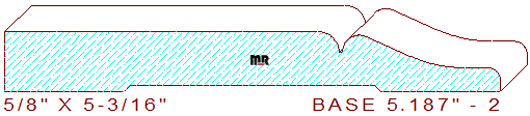

This traditional baseboard moulding 5-3/16" - 2 measures 5.187" wide by .625" thickness. The timeless profile is comprised of a 3-1/2" wide horizontal line with a 7/32" radius edge, attached to a tiny sunk fillet that transitions into a sloped cyma reversa with a 1/8" eased edge located at the top of the pattern. Browse our backout category for a suitable relief cut for this detail, we’re confident you will find a functional design to suit your needs. We suggest changing the backout search parameters by a quarter of an inch or so to find a more suitable size cutter to mill the bottom side of this detail.

We offer thousands of inspirational architectural mouldings that will shape the contour of every exquisite room in your client's beautiful home. Download all our free moulding dxf files, see how easy the services we provide can increase productivity while reducing manufacturing cost.

Caution; the cutters will come within .020" of the moulder bed plates when milling this detail. We recommend a wooden, phenolic or plastic sacrificial bed plate be used for these types of milling operations. For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 5.187" / Depth of Cut = .625" (top knives) & .062" (bottom cutters.)

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
