Baseboard 5-3/16" - 7
Baseboard 5-3/16" - 7

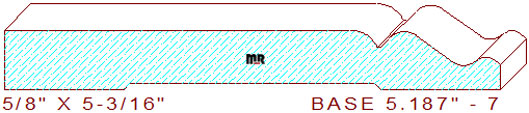

This colonial 5-3/16" - 7 baseboard measures 5.187" width by .625" thickness, allowing a 5-7/16" wide blank of four-quarter lumber for milling on an industrial moulder. The attractive profile comprises a 3-29/32" broad flat line with a 3/16" rolled inner edge on the top center. The roll-over connects to a 3/64" wide sunk fillet merged with a downsloping two tangent radius s-shaped curvature transitioning into a 9/64" convex arc on the design's right side.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.188
Depth of Cut: 99.999
Bottom Cutter Head
Width: 5.187
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$399.28
$351.72
Total:
$751.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$423.03
$375.47
Total:
$798.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$458.66
$411.09
Total:
$869.75
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
