Base Moulding 5-3/16" - 9

Base Moulding 5-3/16" - 9

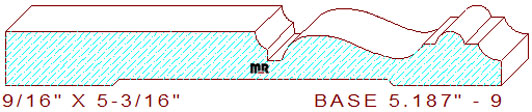

This traditional colonial baseboard moulding 5-3/16" - 9 measures 5.187" wide by .562" thickness. The classic profile is comprised of all the customary geometrical shapes used to build a timeless pattern including straight flat lines, coves, sunk fillets, half round beads and a elongated cyma reversa connecting it all together. Browse our backout category for a suitable relief cut for this detail, we’re confident you will find a functional design to suit your needs. We suggest changing the backout search parameters by a quarter of an inch or so to find a more suitable size cutter to mill the bottom side of this detail.

Architects, interior designers, lumber mills, and manufacturers have been utilizing our vast variety of creative designs for years, we trust you will find that special profile to enhance the architectural style of your client's home. If you have any questions or concerns about knife grinding procedures for any of our profiles, please contact us, we would be honored to assist you.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 5.187" / Depth of Cut = .465" (top knives) & .063" (bottom cutters.)

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
