Base Moulding 5-1/4" - 10

Base Moulding 5-1/4" - 10

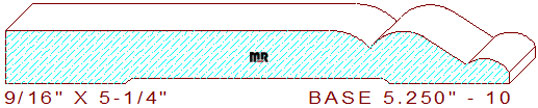

This handsome baseboard moulding 5-1/4" - 10 measures 5.250" wide by .562" thickness, allowing the detail to be milled from either resawn six quarter or solid four quarter lumber. The common profile is composed of a 3-13/16" wide flat line with a 37/64" rounded edge, joined to a down-sloped 29/64" radius thumbnail shape arc that attaches to a 5/16" semicircle, leaving a 1/8" thickness dimension on the right side of the pattern. Browse our backout category for an appropriate relief cut for the bottom of this detail, we’re confident you will find a suitable design to match your needs.

Weinig's eco-green colored full ceramic grinding wheel hogging at 2000 rpm, with a twenty-five-degree back clearance angle will rough grind a set of high-speed steel cutters in a minimal amount of time. Also review our article on the importance of having the profile grinder level, this commentary will insure prolonged use of your machinery while maintaining consistent perfection when manufacturing cutters.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 5.250" / Depth of Cut = .500" (top knives) & .063" (bottom cutters.)

Molding Knife Calculator

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$40.00
$40.00
$40.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file”, please send $5.00 via PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
