Base Moulding 5-1/4" - 100

Base Moulding 5-1/4" - 100

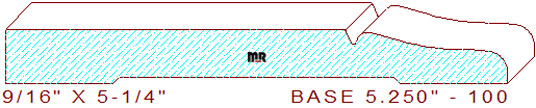

This modest baseboard moulding 5-1/4" - 100 measures 5.250" wide by .562" thickness, allowing the pattern to be milled out of four quarter lumber. The custom profile is composed of a 3-9/16" wide straight line segment in the left center, attached to a small beveled line and a tiny rounded arc creating a v shaped gap in the upper portion, merged with a very shallow two tangent radius concave semicircle with a 7/32" eased edge on the right side of the image above. Explore our backout category for an appropriate relief cut for the bottom of this detail, we’re confident you will find a functional design to match your needs.

Try one of our fancy base shoe moldings on the bottom portion of this pattern, find an irresistibly compelling design by simply changing the width search parameters to any desired size in the search boxes provided. Let us assist you in shaping your home’s astonishing architectural decor, one attractive profile at a time.

Caution; the cutters will come within .020" of the moulder bed plates when milling this detail. We recommend a wooden, phenolic or plastic sacrificial bed plate be used for these types of milling operations. For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 5.250" / Depth of Cut = .563" (top knives) & .062" (bottom cutters.)

Molding Knife Calculator

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$40.00
$40.00
$40.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file”, please send $5.00 via PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
