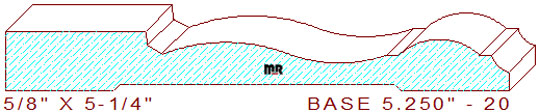

This beautiful base moulding 5-1/4" - 20 measures 5.250" wide by .625" thickness, the nicely shaped profile is comprised of a 1.460" stepped fillet attached to a chamfer with a cyma reversa positioned the middle of the pattern, the upper portion retains a half round bead flanked by a fillet on each side with a small 1/4" radius cavetto at the very top of the design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change
the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please
send $5.00 via PayPal.Me/MirrorReflections we will email you
the dxf file shortly after payment is received.
