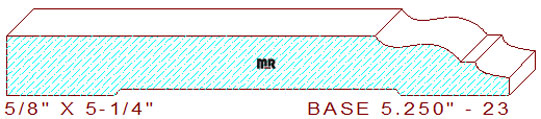

This Base Moulding 5-1/4" - 23 measures 5.250" wide by .625" thickness, with a .444" depth of cut on the top horizontal set of moulding knives. Please search our backout category for a suitable relief cut for this detail, we have many available options to choose from.
The profile is comprised of a 3-27/32" wide straight line connected to a shallow cyma recta, attached to a 5/32" wide horizontal fillet, with an elliptical shaped cavetto positioned at the top of the pattern.
Try one of our 125% concentration Ultimate Borazon grinding wheels; finish grinding at 3000 rpm, with a twenty-degree back clearance angle, will create a superior micro edge on all your high-speed steel moulding knives. During the milling process, these knives will be capable of milling some of the finest quality architectural mouldings you have ever seen.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.Copyright © Mirror Reflections Inc. All rights reserved.
