Baseboard 5-1/4" - 24
Baseboard 5-1/4" - 24

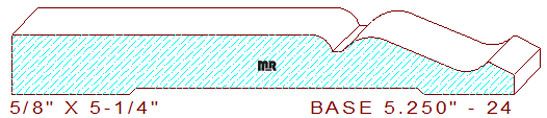

This beautiful 5-1/4" - 24 base moulding measures 5.250" wide by .625" thickness. The profile portion measures 2-1/8" wide. It is comprised of a radius edge fillet that transitions into a sunk fillet attached to an elongated cyma reversa, transforming into a chamfered edge at the top of the pattern.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
