Baseboard 5-1/4" - 41
Baseboard 5-1/4" - 41

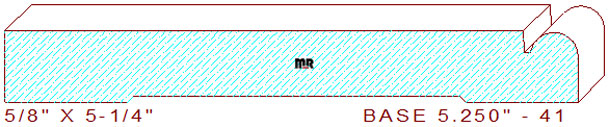

This single bead 5-1/4" - 41 base moulding measures 5.250" wide by .625" thickness enabling the pattern to be milled from four-quarter lumber. The simplistic profile is comprised of a 3-15/16" broad straight line with a 15/32" vertical step, connected to a 1/16" wide sunk fillet with a 1/4" radius half circle on the side edge of the design. The bead is intentionally recessed by .020" just in case you want to sand the molding after the milling process.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.250
Depth of Cut: 0.406
Bottom Cutter Head
Width: 5.250
Depth of Cut: 0.630
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$355.00
$379.00
Total:
$734.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$379.00
$403.00
Total:
$782.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$415.00
$439.00
Total:
$854.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
