Baseboard 5-1/4" - 45

Baseboard 5-1/4" - 45

Baseboard 5-1/4" - 45

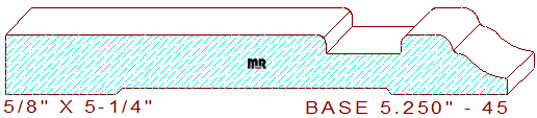

This beautiful 5-1/4" - 45 baseboard measures 5.250" wide by .625" thickness, allowing the detail to be milled from four-quarter lumber. The custom profile was designed explicitly for inlaying a piece of 3/4" rope mould. The profile comprises a 3-23/64" broad line with a 13/64" deep step on the left. It's connected to a 49/64" wide sunk fillet for the rope that joins to a 9/16" wide raised fillet with rounded edges and a three tangent radius ogee on the right side of the pattern. We offer this pattern with a 1/2" dado for rope moulding for your review and consideration, baseboard 5.250" - 54.

Caution; the cutters will come within .020" of the machine bed plates when milling this detail. We recommend a wooden, phenolic or plastic sacrificial bed plate be used for these milling operations.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.250
Depth of Cut: 0.625
Bottom Cutter Head
Width: 5.250
Depth of Cut: 0.063

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$343.00
$343.00
Total:
$686.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$367.00
$367.00
Total:
$734.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$391.00
$391.00
Total:
$782.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
