Base Moulding 5-1/4" - 47

Base Moulding 5-1/4" - 47

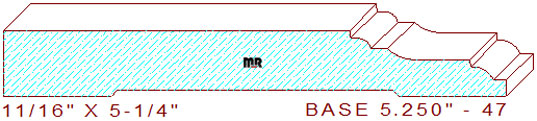

This stylish baseboard moulding 5-1/4" - 47 measures 5.250" wide by .687" thickness, allowing the detail to be machined from four quarter lumber. The modern profile is composed of a 3-5/8" wide horizontal line with a 3/32" vertical step in the middle, connected to a 9/64" quarter round arc with a 11/64" wide line segment that transitions into a 55/64" wide congee which is derived from a 7/16" cove, the right side of the design consists of a 15/64" ovolo, leaving an 11/64" thickness dimension on the edge of the pattern.

Architects, interior designers, lumber mills and manufacturers have been utilizing our vast variety of creative designs for years, we trust you will find that special profile to enhance the architectural style of your client's home. Download all our free moulding dxf files, see how easy the services we provide can increase productivity while reducing manufacturing cost.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 5.250" / Depth of Cut = .518" (top knives) & .063" (bottom cutters.)

Molding Knife Calculator

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$40.00
$40.00
$40.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file”, please send $5.00 via PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
