Baseboard 5-1/4" - 55
Baseboard 5-1/4" - 55

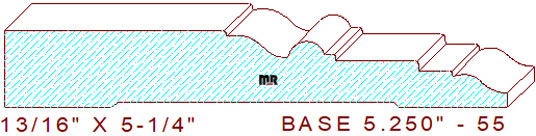

This intricately designed 5-1/4" - 55 baseboard measures 5.250" wide by .812" thickness, allowing the detail to be machined from four-quarter lumber. The extravagant profile is composed of a 2-5/16" broad straight line with a 1/16" vertical step on the left, attached to a 3/8" radius arc tangent off of a 1/4" concave semicircle with a 3/8" wide half round bead and a 1/8" wide by 5/64" deep step in the center, connected to a 7/8' wide by 7/64" deep line segment that transitions into another 11/32" by 1/16" drop in elevation with a small ogee on the right side of the pattern.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.250
Depth of Cut: 0.657
Bottom Cutter Head
Width: 5.250
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$379.00
$355.00
Total:
$734.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$403.00
$379.00
Total:
$782.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$439.00
$415.00
Total:
$854.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
