Base Moulding 5-1/4" - 58

Base Moulding 5-1/4" - 58

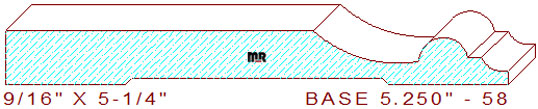

This exceptional baseboard moulding 5-1/4" - 58 measures 5.250" wide by .562" thickness, allowing the detail to be machined for resawn six quarter or solid four quarter lumber. The modern profile is composed of a 3-15/64" wide straight horizontal line on the left, connected to a 1-5/16" radius cove that transitions to a 33/64" wide half round circle, joined to a 9/64" wide line segment with a 15/64" cove on the right side of the detail. Browse our backout category for a suitable relief cut for this pattern, we have a few options to select from. We have a small group alternative sizes with similar characteristics for your review and consideration, baseboard 6.000" - 100, mopboard 7.000" - 56 and base molding 8.375" - 3.

Looking for that special moulding to enhance the architectural style of your current project, send us a sketch, custom design is our specialty. Experience the beauty we can create together from your outlined ideas and our vast knowledge of the woodworking industry.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 5.250" / Depth of Cut = .402" (top knives) & .062" (bottom cutters).

Molding Knife Calculator

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$40.00
$40.00
$40.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file”, please send $5.00 via PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
