Baseboard 5-1/4" - 6
Baseboard 5-1/4" - 6

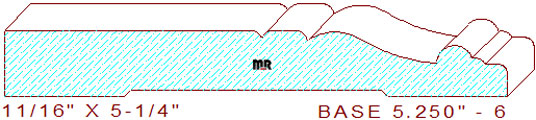

This visually appealing 5-1/4" - 6 base moulding measures 5.250" wide by .687" thickness, allowing the detail to be machined from four-quarter lumber. The attractive profile is composed of a 2-11/16" wide flat line with a 1/8" radius edge on the left, connected to a 1/2" wide raised fillet also with 1/8" rounded edges that transitions into a two tangent radius cyma reversa in the center, attached to a 3/8" wide half round bead and a 1/8" quarter round arc joined to a 15/64" wide line segment with a 3/32" eased edge on the right side of the pattern. We offer a matching door casing for this detail you may want to review and consider, door/window casing 4.000" - 48.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.250
Depth of Cut: 0.593
Bottom Cutter Head
Width: 5.250
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$355.00
$355.00
Total:
$710.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$379.00
$379.00
Total:
$758.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$415.00
$415.00
Total:
$830.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
