Baseboard 5-1/4" - 7
Baseboard 5-1/4" - 7

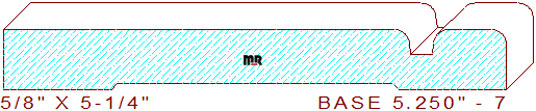

This contemporary base moulding 5-1/4" - 7 measures 5.250" wide by .625" thickness, enabling the detail to utilize four-quarter lumber for machining on an industrial-grade molder. The simplistic profile is comprised of a 4-1/4" wide flat line with a 5/32" rolled inside edge on the top center, connected to a 1/4" wide by 1/4" deep sunk fillet that transitions into a 3/4" raised fillet with 5/32" eased corners on the right side of the pattern. We offer an alternative profile with altered inner dimensions for your review and consideration, baseboard 5.250" - 67.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.250
Depth of Cut: 0.312
Bottom Cutter Head
Width: 5.250
Depth of Cut: 0.062
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$355.00
$355.00
Total:
$710.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$379.00
$379.00
Total:
$758.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$415.00
$415.00
Total:
$830.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
