Baseboard 5-1/4" - 86
Baseboard 5-1/4" - 86

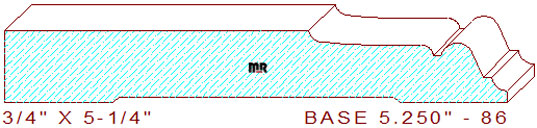

This intriguing 5-1/4" - 86 baseboard measures 5.250" width by .750" thickness, authorizing the use of four-quarter lumber for milling on a commercial-grade molder. The stylish profile contains a 3-11/64" broad flat line on the top left. The line joins to a bidirectional three-tangent radius cong'e in the center. This area connects with a 3/32" sunk fillet, a thumbnail-shaped convex arc, another 3/32" wide fillet, and an 11/64" cove on the design's right side.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.250
Depth of Cut: 0.625
Bottom Cutter Head
Width: 5.250
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$355.00
$355.00
Total:
$710.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$379.00
$379.00
Total:
$758.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$415.00
$415.00
Total:
$830.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
