Baseboard 5-1/4" - 90

Baseboard 5-1/4" - 90

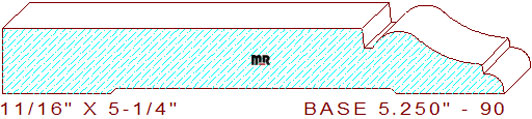

This common 5-1/4" - 90 base moulding measures 5.250" wide by .687" thickness, permitting the detail to be milled out of four-quarter lumber. The appealing profile is composed of a 3-49/64" wide line segment on the top left center, attached to a 3/32" wide by 13/64" deep sunk fillet, joined to a two tangent radius cyma reversa with a 7/64" vertical elevation drop and a 3/16" quarter circle on the right side of the pattern. We offer a few other similar themed profiles in the same width you may want to review and consider, baseboard 5.250" - 12, baseboard 5.250" - 27 baseboard 5.250" - 56 and baseboard 5.250" - 84.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.250
Depth of Cut: 0.687
Bottom Cutter Head
Width: 5.250
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$379.00
$355.00
Total:
$734.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$403.00
$379.00
Total:
$782.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$439.00
$415.00
Total:
$854.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
