Stylish Base Moulding 5-3/8" - 2

Stylish Base Moulding 5-3/8" - 2

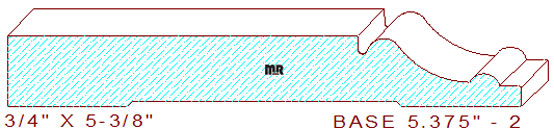

This Stylish Base Moulding 5-3/8" - 2 measures 5.375" wide by .750" thickness with a .712" depth of cut on the top horizontal moulder cutter head. The creative detail is comprised of a 3-21/32" wide fillet attached to a cyma reversa that transitions into a 11/64" radius half round bead joined to an eased edge fillet at the top of the pattern. We provide the cut steel size on all our moulding knife designs so you have the correct size knife steel blanks required before you start moulding production.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
