Base Moulding 5-3/8" - 8

Base Moulding 5-3/8" - 8

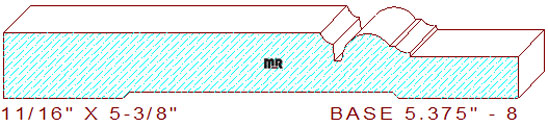

This Innovative Base Moulding 5-3/8" - 8 measures 5.375" wide by .687" thickness with a .298" depth of cut on the top horizontal set of knives. Please search our backout category for an appropriate relief cut for this detail, we have a few options for you to choose from. You may want to change the backout search parameters by a quarter of an inch or so to find another alternative.

The pattern is comprised of a 3-5/16" wide straight line, attached to a small cavetto and a 3/32" wide sunk fillet, it transitions into a half round circle, tiny fillet, 3/32" radius cove, and a 1-1/8" wide straight horizontal line at the top of the detail. This profile was intentionally designed for use with one of our many panel mouldings or base cap mouldings, simply alter the search parameters to the size profile you wish to view.

Try one of our 125% concentration ultimate borazon grinding wheels. Finish grinding at 3000 rpm with a twenty-degree back clearance angle, will create a superior micro edge on all your high-speed steel knives. During the machining process these cutters will be capable of milling some of the finest quality architectural mouldings you have ever produced.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
