Base Moulding 5-3/8" - 9

Base Moulding 5-3/8" - 9

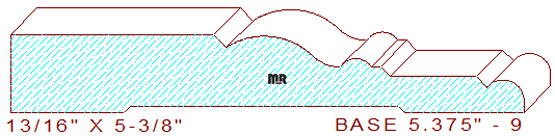

This Beautiful Base Moulding 5-3/8" - 9 measures 5.375" wide by .812" thickness with a .812" depth of cut on the top horizontal set of knives. Caution; the moulding knives will come within .020" of the moulder bed plates when milling this detail, we suggest a sacrificial bed plate be used for these types of milling operations. Please search our backout category for an appropriate relief cut for this detail, we have a few options for you to choose from. You may want to change the backout search parameters by a quarter of an inch or so to find other options for this pattern.

The stylish profile is comprised of a 2-1/8" wide straight line with a chamfered edge, it transitions into a cyma reversa attached to a half round circle, small fillet, chamfer, straight line with a bevel and a half round circle at the top of the pattern.

Do you realize how important proper tool balance is to your current moulding operation? Find out more on how critical it is to have balanced moulding knives, and the problems they create if you neglect to focus on this task.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
