Baseboard 5-7/16" - 8
Baseboard 5-7/16" - 8

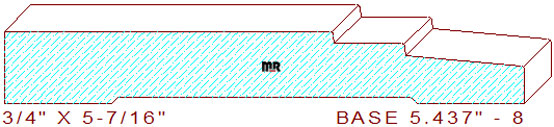

This stepped 5-7/16" - 8 baseboard measures 5.437" wide by .750" thickness. This pattern can be milled from four-quarter lumber. The tiered profile is composed of a 3-7/16" broad flat line with a 1/8" vertical step on the top left center, attached to a 3/4" broad line segment that merges with a 1-1/4" wide, 5.222-degree tapered line with a 3/64" eased edge, leaving a 3/8" thickness dimension on the right side of the design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.438
Depth of Cut: 0.556
Bottom Cutter Head
Width: 5.438
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$364.78
$364.78
Total:
$729.55
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$389.53
$389.53
Total:
$779.06
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$426.66
$426.66
Total:
$853.31
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
