Base Moulding 5-1/2" - 10

Base Moulding 5-1/2" - 10

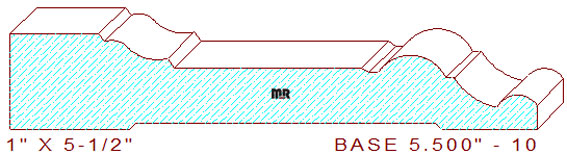

This Ornate Base Moulding 5-1/2" - 10 measures 5.500" wide by 1.000" thickness with a .806" depth of cut on the top horizontal set of moulding knives. Search our backout category for an appropriate relief cut for this pattern, we have a few options for you to choose from.

The lovely profile is comprised of a 15/16" wide straight line that transitions into a cyma reversa flanked by small chamfers, connected to a 1-61/64" wide horizontal line, joined to a 45/64" wide half round circle flanked by small fillets, attached to a 43/64" radius cove that transforms into a 1/4" radius arc at the top of the pattern.

Do you realize how important proper tool balance is to your current moulding operation? Find out more on how critical it is to have balanced moulding knives, and the problems they create if you neglect to focus on this task.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
