Base Moulding 5-1/2" - 11

Base Moulding 5-1/2" - 11

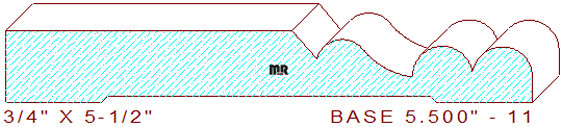

This beautiful base moulding 5-1/2" - 11 measures 5.500" wide by .750" thickness. The beaded profile is comprised of a 3-15/64" wide horizontal line with a 9/32" deep angled step, connected to a two tangent radius cyma reversa, joined with two 5/16" radius half round circles at the top of the design. Browse our backout category for a suitable relief cut for this detail, we have a few options to select from.

Custom-made elegance is a phrase used to define the beauty, style and artisanship of thousands of our moulding designs. Whether you own a recently built house or older style residence, we have the ability, knowledge and experience to create profiles that will complement the architectural decor of your elegant home or office.

For knife quoting purposes use the calculator below, we have added only the important dimensions, just determine the profiles you need. A brief detailed explanation on how to use the calculator is located here.

Width = 5.500" / Depth of Cut = .625" (top knives) & .062" (bottom cutters).

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
