Baseboard 5-1/2" - 111
Baseboard 5-1/2" - 111

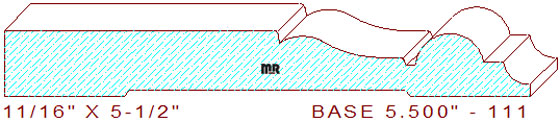

This classy baseboard 5-1/2" - 111 measures 5.500" wide by .687" thickness. The profile is comprised of a 2-7/8" broad horizontal line with a 1/16" eased edge, attached to a two tangent radius cyma reversa in the center. It's connected to a 21/32" wide half circle flanked by small fillets with a 17/64" cavetto on the design's right side.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.500
Depth of Cut: 0.562
Bottom Cutter Head
Width: 5.500
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$368.00
$368.00
Total:
$736.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$393.00
$393.00
Total:
$786.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$430.50
$430.50
Total:
$861.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
