Base Moulding 5-1/2" - 129

Base Moulding 5-1/2" - 129

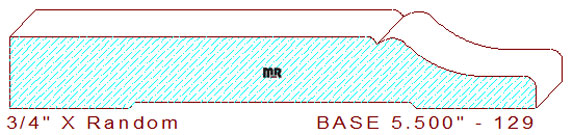

This Base Moulding 5-1/2" - 129 measures 5.500" wide by .750" thickness, with a depth of cut of .697" for the top set of moulding cutters. Please search our backout category for a suitable relief cut for this detail, we have a few to choose from. The profile is comprised of a 3-27/32" wide fillet attached to a 1/8" radius, then transitions into a cyma reversa, which is tangent off a 1/8" radius eased edge fillet, positioned at the top of the pattern.

Purchase our dxf file to cut a precision moulding template on your own CNC (Computer Numerical Controlled) machinery, start production literally within minutes after downloading, just one more way Mirror Reflections Inc. sets the standard for custom moulding knife design.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
