Baseboard 5-1/2" - 140
Baseboard 5-1/2" - 140

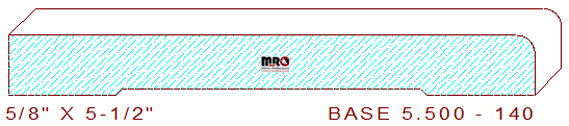

This fundamental baseboard 5-1/2" - 140 measures 5.500" wide by .625" thickness, enabling a 5-3/4" inch wide blank of four-quarter lumber for milling on an industrial molder. These rudimentary designs are standard in spec homes or more economical commercial construction. A residential profile is generally 3 1/2″ in width for casings and 5-1/2" in baseboards. This sanitary profile retains a 3/16" round over on the top corner of the design. It can be found at all popular building material suppliers and is an effortless profile to miter. We offer a few doors/window casings details in different widths and thicknesses for your review and consideration, door casing 3.000" - 98, door casing 3.500" - 213, and door casing 4.000" - 96.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.500
Depth of Cut: 0.343
Bottom Cutter Head
Width: 5.500
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$368.00
$368.00
Total:
$736.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$393.00
$393.00
Total:
$786.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$430.50
$430.50
Total:
$861.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
