Base Moulding 5-1/2" - 17

Base Moulding 5-1/2" - 17

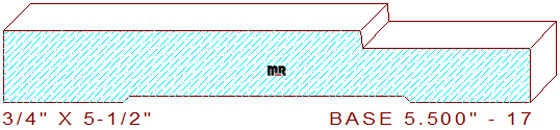

This modern baseboard moulding 5-1/2" - 17 measures 5.500" wide by .750" thickness, allowing the pattern to be milled from four quarter lumber. The single step contemporary design is composed of a 1-3/4" wide by 3/16" deep rabbet plowed out of the top right hand side of the detail, this profile is a good candidate for one of our stylish base cap mouldings that would embellish and customize the pattern to your specific architectural style. Browse our backout category for an appropriate relief cut for the bottom of this detail, we’re confident you will find a suitable design to match your needs.

Utilize any of our patterns to create a stylish moulding catalog for your millwork company, or, simply connect our profile catalog to your website, this will enable you to offer more eye-catching profiles to your clients while reducing production cost spent on molding design. Let us help you in the transformation of that beautiful house being constructed into an elegant home.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 5.500" / Depth of Cut = .188" (top knives) & .062" (bottom cutters.)

Molding Knife Calculator

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$40.00
$40.00
$40.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file”, please send $5.00 via PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
