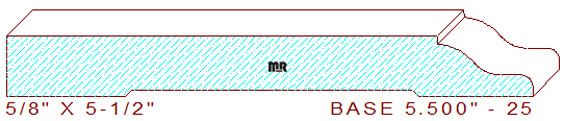

This Base Moulding 5-1/2" - 25 measures 5.500" wide by .625" thickness, the profile portion measures 1" wide which is comprised of a 3/32" deep vertical fillet attached to a cyma reversa with a 1/8" radius edge at the top of the design. The DXF file contains two high precision CAD drawings to create moulder knives for this specific detail one for full width and the other for just the detail portion of the design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change
the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please
send $5.00 via PayPal.Me/MirrorReflections we will email you
the dxf file shortly after payment is received.
