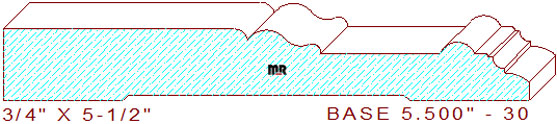

This Stylish Base Moulding 5-1/2" - 30 measures 5.500" wide by .750" thickness, the inventive profile is comprised of a 2-9/16" wide straight line connected to a 5/32" radius that transitions into a cyma reversa with an attached sunk fillet joined with a 3/16" radius half round circle merged with a stepped fillet, small cove, and 3/8" radius arc at the top of the pattern. All moulding knife template designs have a ten-millimeter (.394") axial constant position to increase accuracy and reduce moulder setup time throughout production.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change
the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please
send $5.00 via PayPal.Me/MirrorReflections we will email you
the dxf file shortly after payment is received.
