Base Moulding 5-1/2" - 50

Base Moulding 5-1/2" - 50

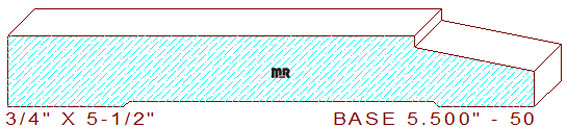

This modern base moulding 5-1/2" - 50 measures 5.500" wide by .750" thickness. The angled edge profile consists of a 4-1/4" wide horizontal line with a 1/8" vertical step, attached to a 1-1/4" wide 11.31-degree bevel with and eased edge leaving a 3/8" thickness dimension at the top of the design. Browse our backout category for a suitable relief cut for this detail, we have a few options to select from. We offer a couple of other similar styles of baseboard in the same width you might want to review and consider, base 5.500" - 16 and base 5.500" - 23, if you want to view a different width baseboard simply alter the search parameter in the search boxes provided on the category page.

Ever wonder why some mouldings look and feel better than others in the industry? Please read our article on knife marks, learn how machine feed rates and rpm of the cutter head can directly affect the quality of your finished mouldings.

For knife quoting purposes use the calculator below, we have added only the important measurements, just determine the cutters you need. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the moulder to help operators save time and increase accuracy during machine setup.

Width = 5.500" / Depth of Cut = .563" (top knives) & .062" (bottom cutters).

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
